| Product Attribute | Attribute Value |
|---|---|
| Accuracy | 0.1% (DC) Quartz |
| Application | Medical equipment, office equipment, test equipment and etc. |
| Approvals | CE Compliant, UL Recognized |
| Color | Black |
| Connection Type | Screw |
| Cut Out, Panel | 1.45×0.87 " |
| Depth | 0.157" (4mm) |
| Diameter, Hole | 0.16 in. |
| Dimensions | 2.47" L x 2.1" W x 1.21" H |
| Dimensions, Cutout, Inches | 36.8 x 22.1 mm |
| Display Digit Height | 3.6 mm |
| Display Range | 7 Digit, 99999.99 hr |
| Display Type | Digital |
| Frequency, Operating | 60 Hz |
| Function | Hour Meter |
| Input Type | Voltage |
| Material, Casing | Black Polymer |
| Measurement Range | 0 to 99999.99 hrs. |
| Measuring Range | 0 to 99999.99 hrs. |
| Minimum Operating Temperature | -10 °C |
| Mounting Type | Panel |
| Number of Digits | 7 Digits |
| Operating Temperature | -40 to 82 °C |
| Power Rating | 2 W |
| Primary Type | Electromechanical |
| Product Header | Electromechanical Hour Meter |
| Series | |
| Shape | Rectangular |
| Standards | UL, cUL Recognized, CSA Certified |
| Supply Voltage | 115 VAC VAC |
| Temperature Range | -10 to 60 °C |
| Temperature, Opening, Maximum | 60 °C |
| Termination | Screw |
| Type | Electromechanical |
| Voltage Rating | 115 VAC |
Overview

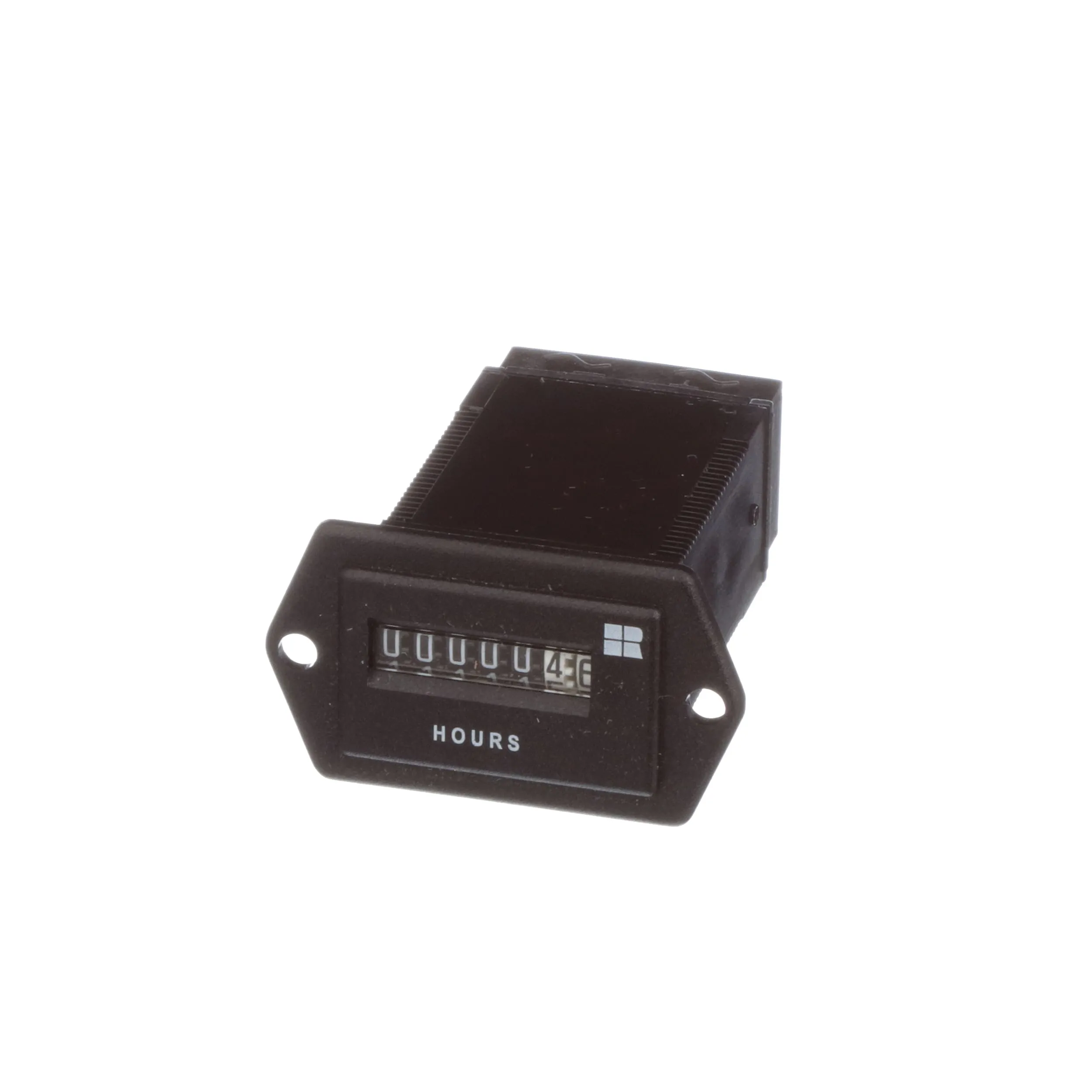

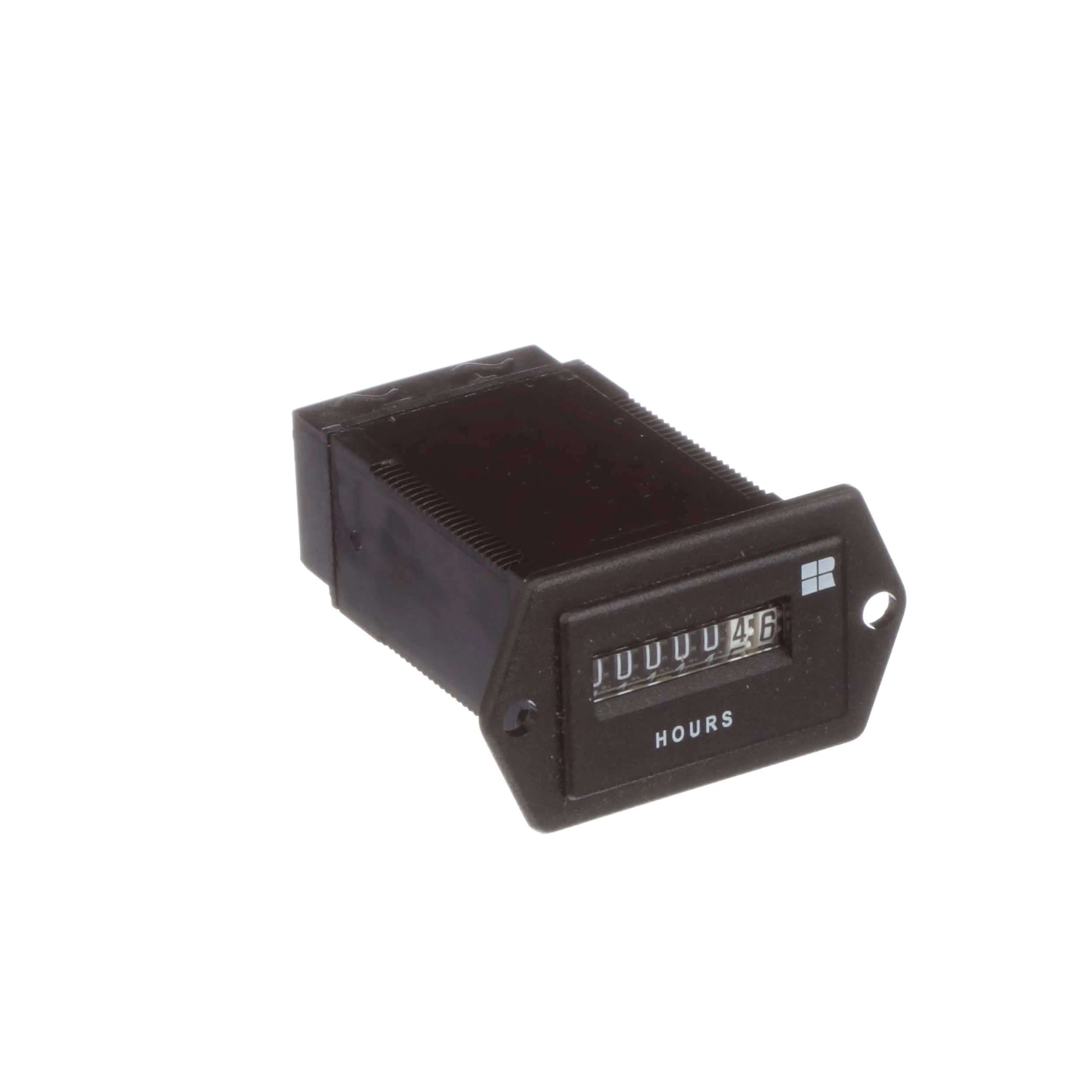

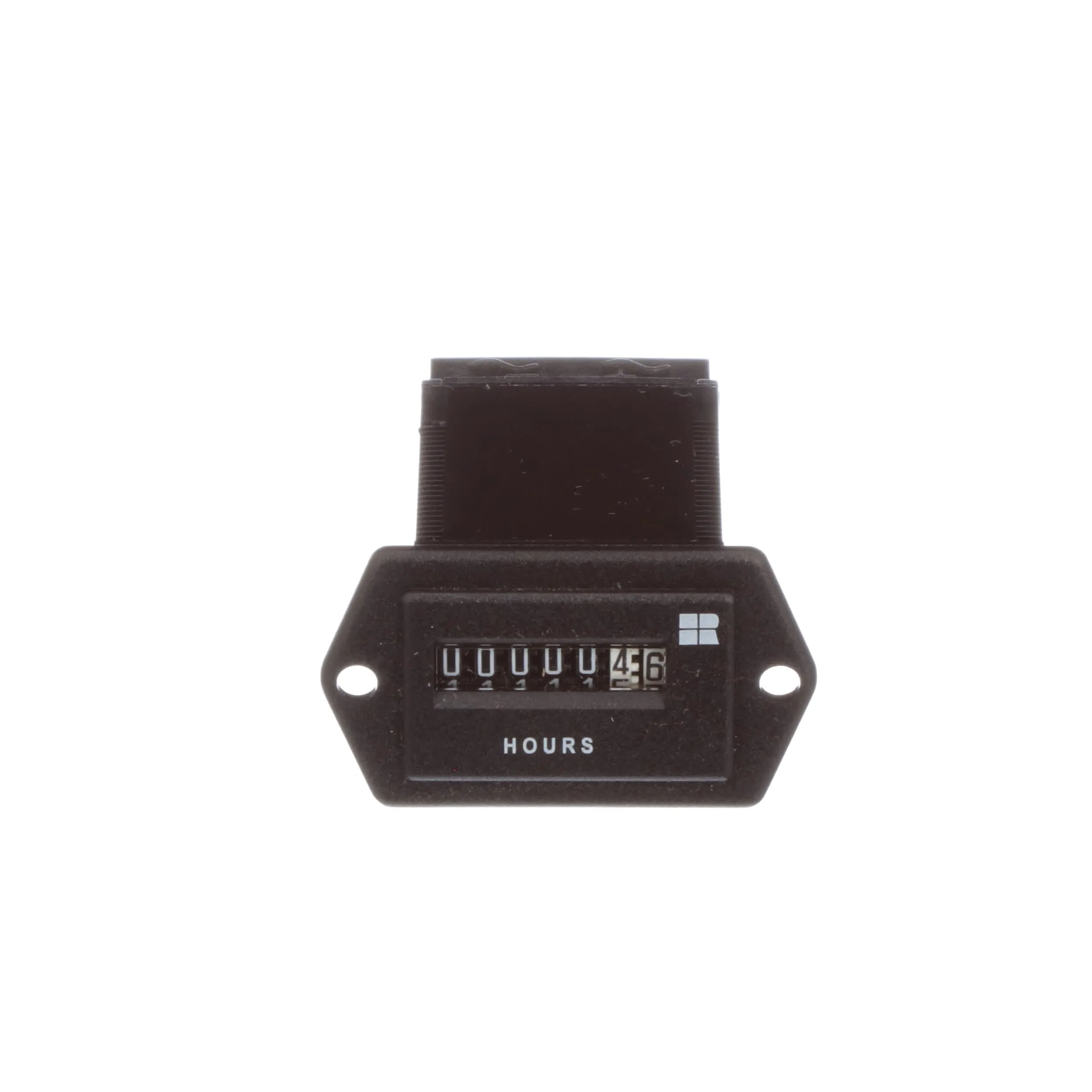

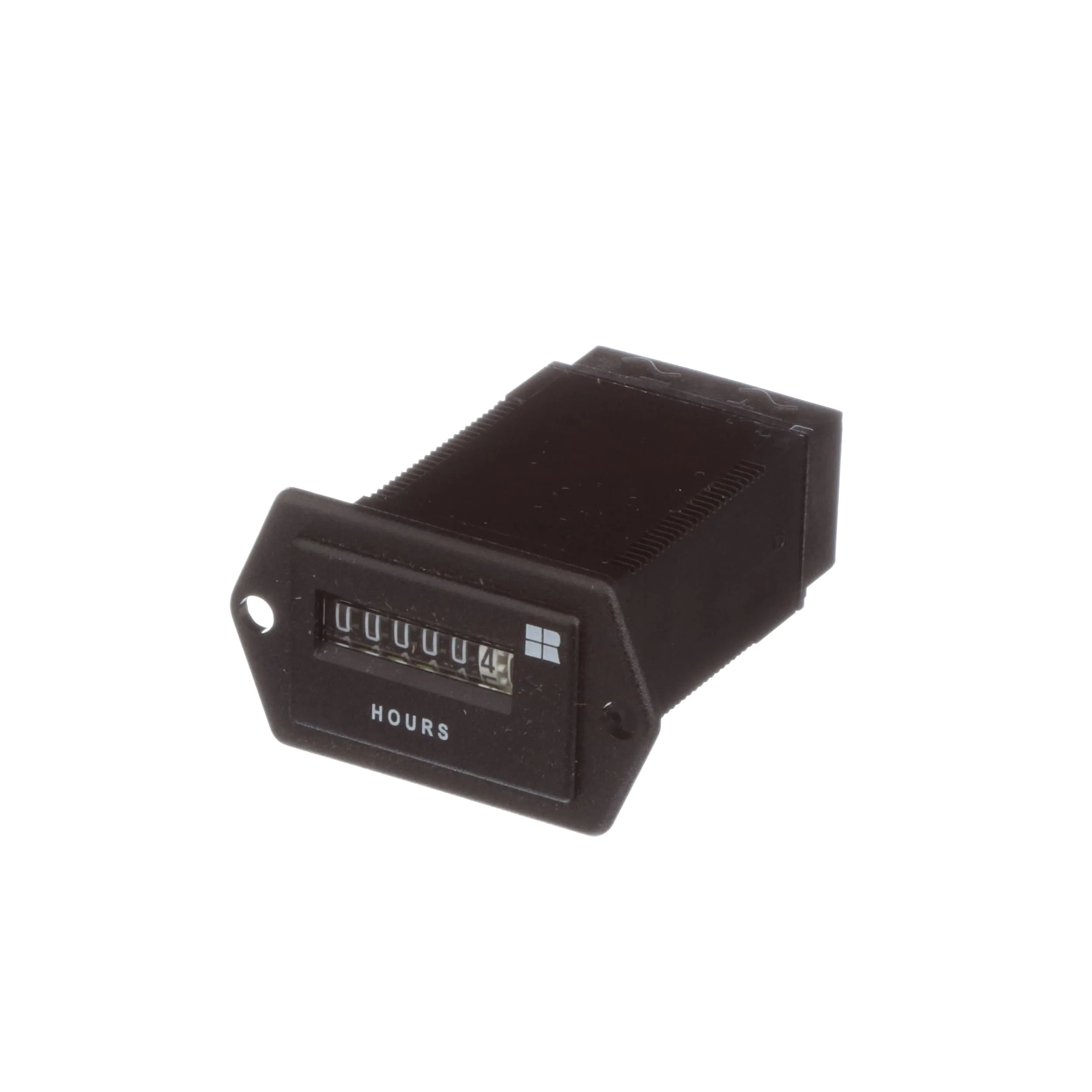

Electromechanical 7-digit AC Hour Meter with 0.14" high figures. Records up to 99,999.99 hours. Available in square bezel mount with retainer clip. UL Recognized, CE Compliant and CSA Certified. Panel cutout: 1.81" square.
