| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±0.02% % |
| Approvals | 12 Compliant, CE, NEMA 4X, RoHS Compliant, SAE, Ul, cUL Recognized |

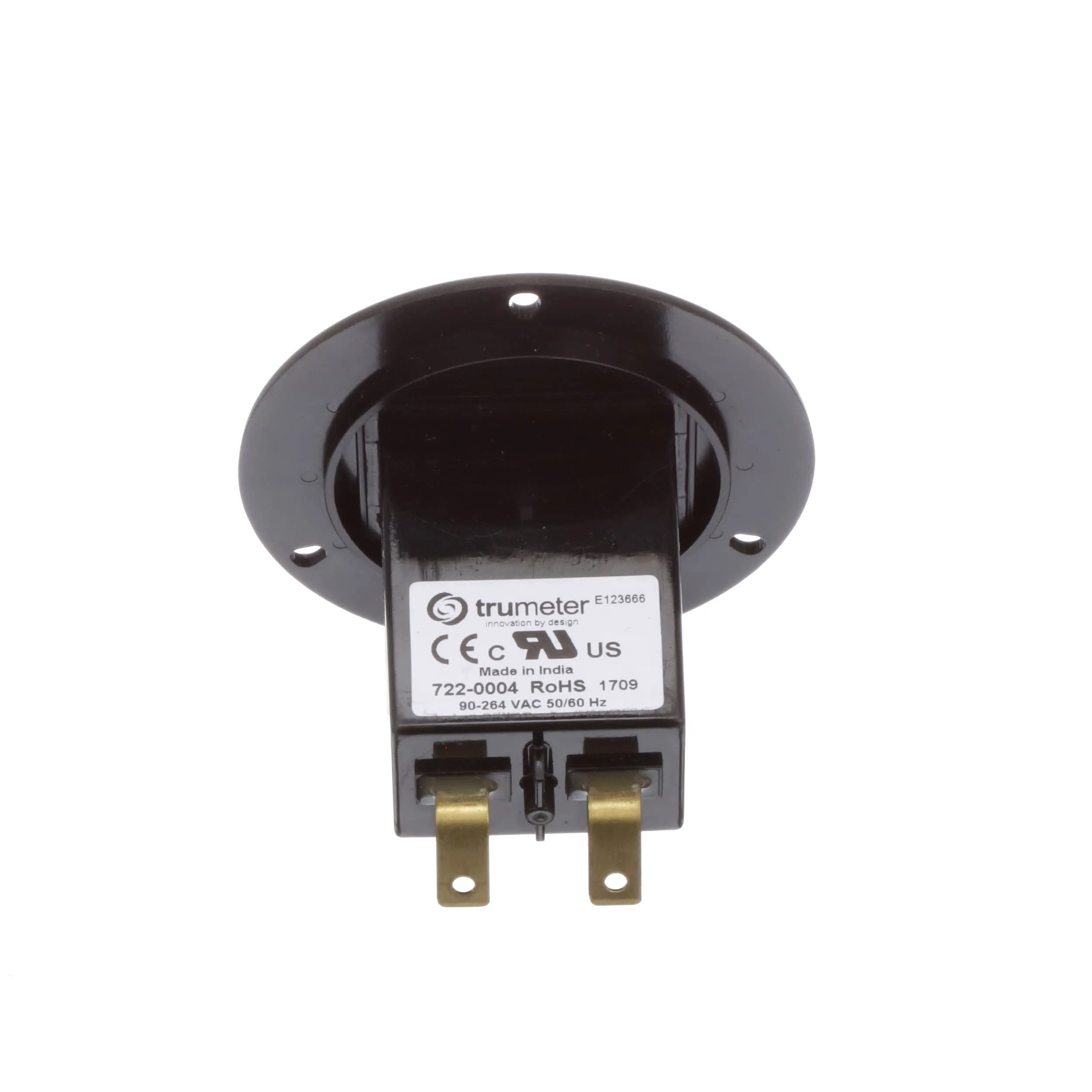

| Connection Type | Spade Terminal |
| Cut Out, Panel | 2 " |
| Dimensions | 2.47" H x 2.8" Dia. |
| Dimensions, Cutout, Inches | 2 (Dia.) in. |
| Display Digit Height | 0.125 |
| Display Type | Digital |
| Function | Hour Meter |
| Input Type | Voltage |
| Material, Casing | Black Polymer |
| Measurement Range | 0 to 99999.9 hrs. |
| Measuring Range | 0 to 99999.9 hrs. |
| Minimum Operating Temperature | -10 °C |
| Mounting Type | Panel |
| Number of Digits | 6 Digits |
| Operating Temperature | –40 to 85 °C |
| Primary Type | Electromechanical |
| Product Header | Electromechanical Totally Sealed Hour Meter |
| Series | |
| Special Features | Totally Sealed |
| Supply Voltage | 90 to 264 VAC VAC |
| Temperature Range | -10 to 60 °C |
| Temperature, Opening, Maximum | 60 °C |
| Type | Electromechanical |
Overview

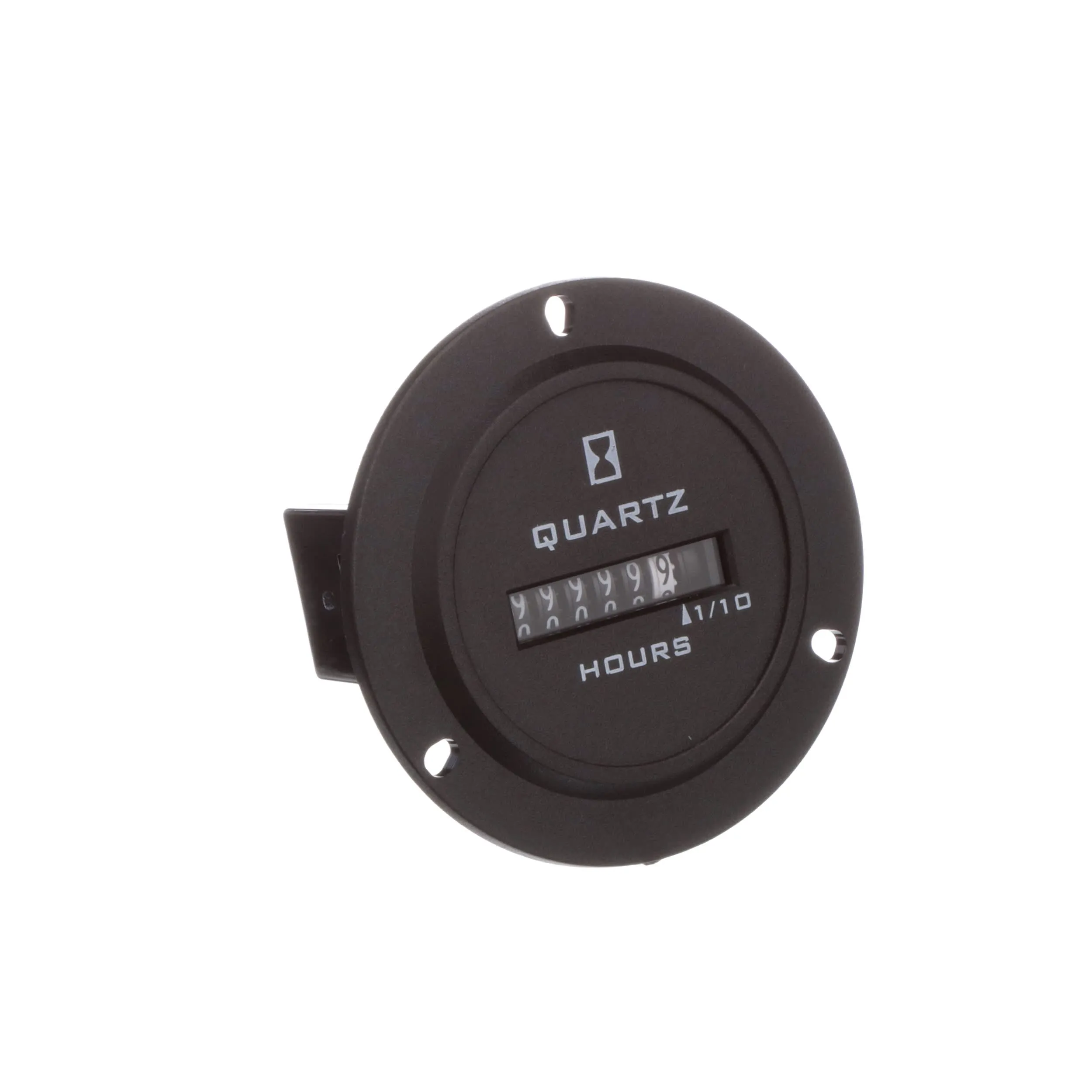

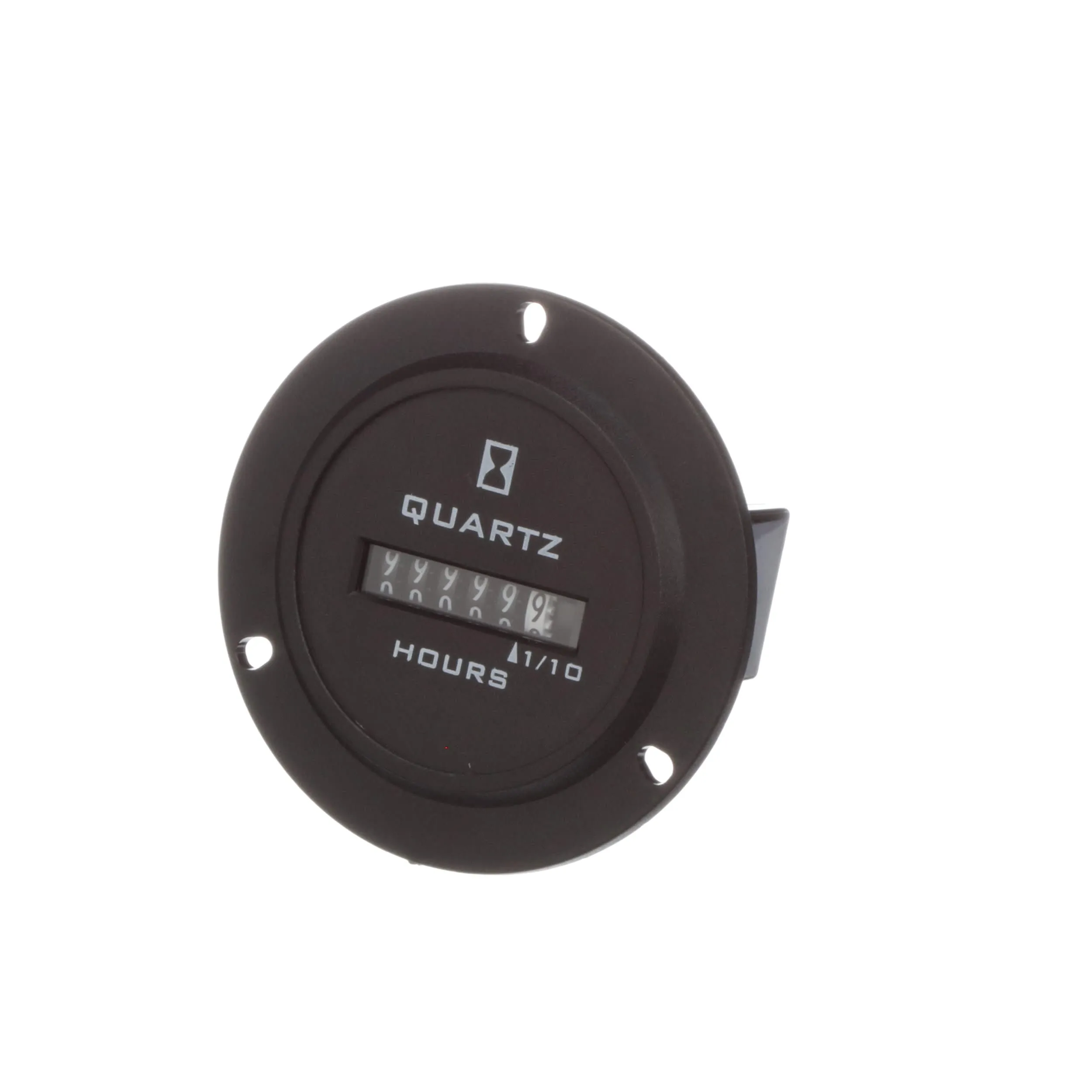

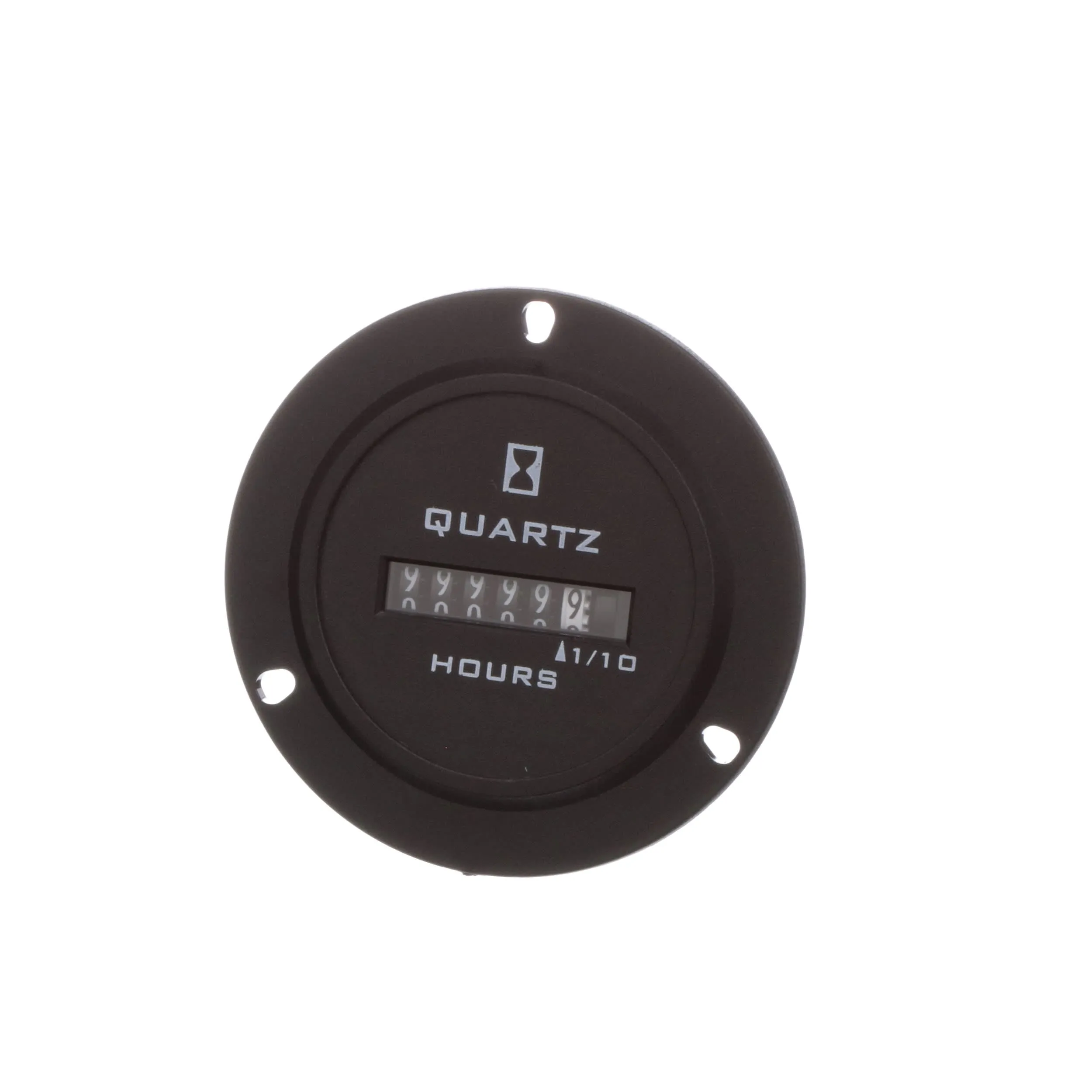

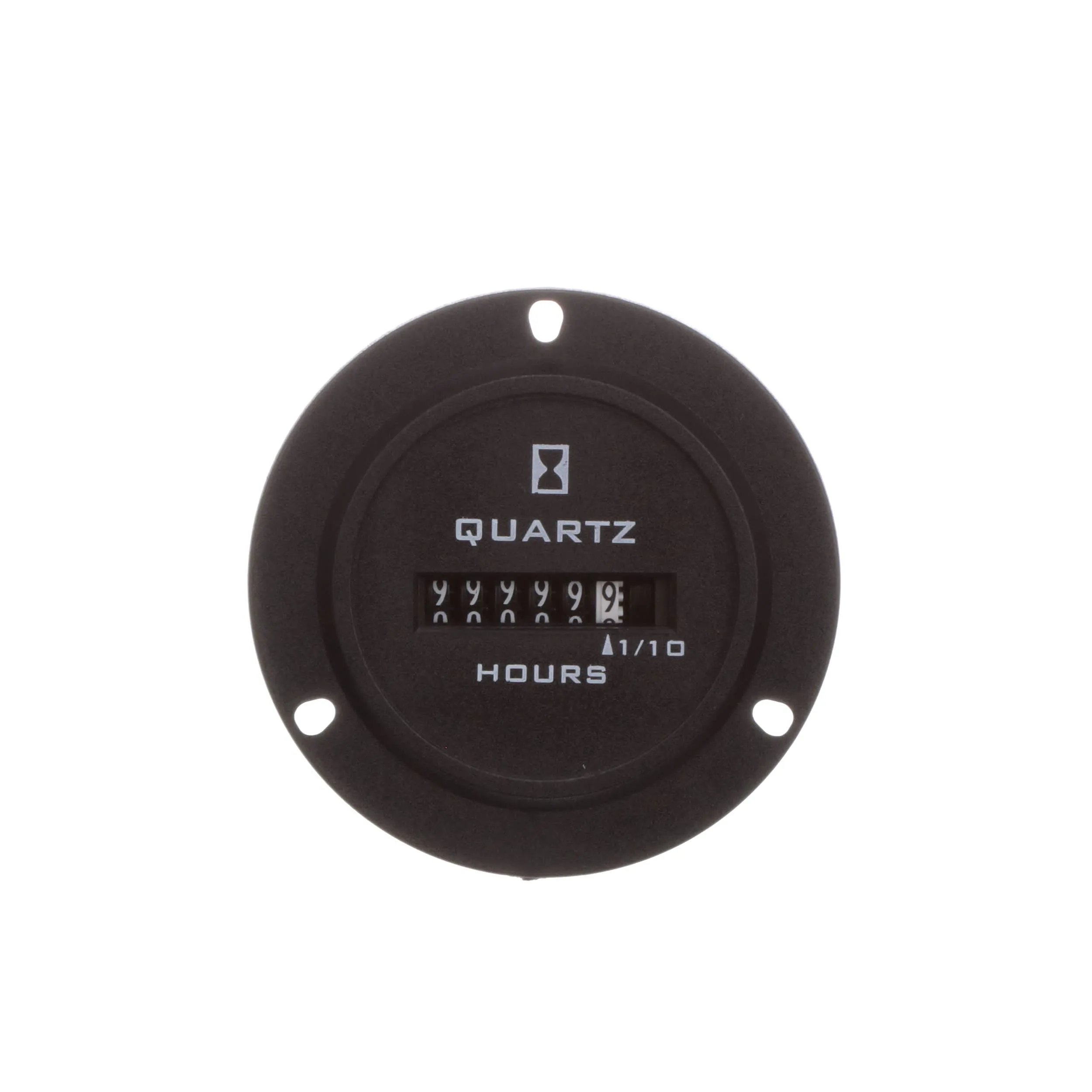

The Redington Model 722 provides an AC Hour Meter with an operating range of 90-240 VAC (±10%) 50/60 Hz. in standard industry housings. A quartz time base insures accurate long-term time keeping while the totally sealed case protects against the environment and provides years of reliable service.
Features:
