| Product Attribute | Attribute Value |
|---|---|
| Approvals | SAE |
| Connection Type | Terminal |
| Cut Out, Panel | 1.46 L x 0.95 H in., 37.08 L x 24.13 H mm |
| Depth | 0.079" (2mm) |
| Dimensions, Cutout, Inches | 37.08 x 24.13 mm |
| Display Digit Height | 7 mm |
| Display Type | Digital, LCD |
| For Use With | Maintenance Applications |
| Function | Hour Meter |
| Input Signal Type | AC/DC Voltage |
| Input Type | Voltage |
| Measurement Range | 0 to 99999.9 hr. |
| Measuring Range | 0 to 99999.9 hrs. |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Panel |
| Number of Digits | 6 Digits |
| Series | |
| Special Features | Non-Volatile Memory, Epoxy Encapsulated |
| Standards | IP67 |
| Supply Voltage | 4.5 to 60 VDC VDC |
| Temperature Range | -40 to 85 °C |
| Temperature, Opening, Maximum | 85 °C |

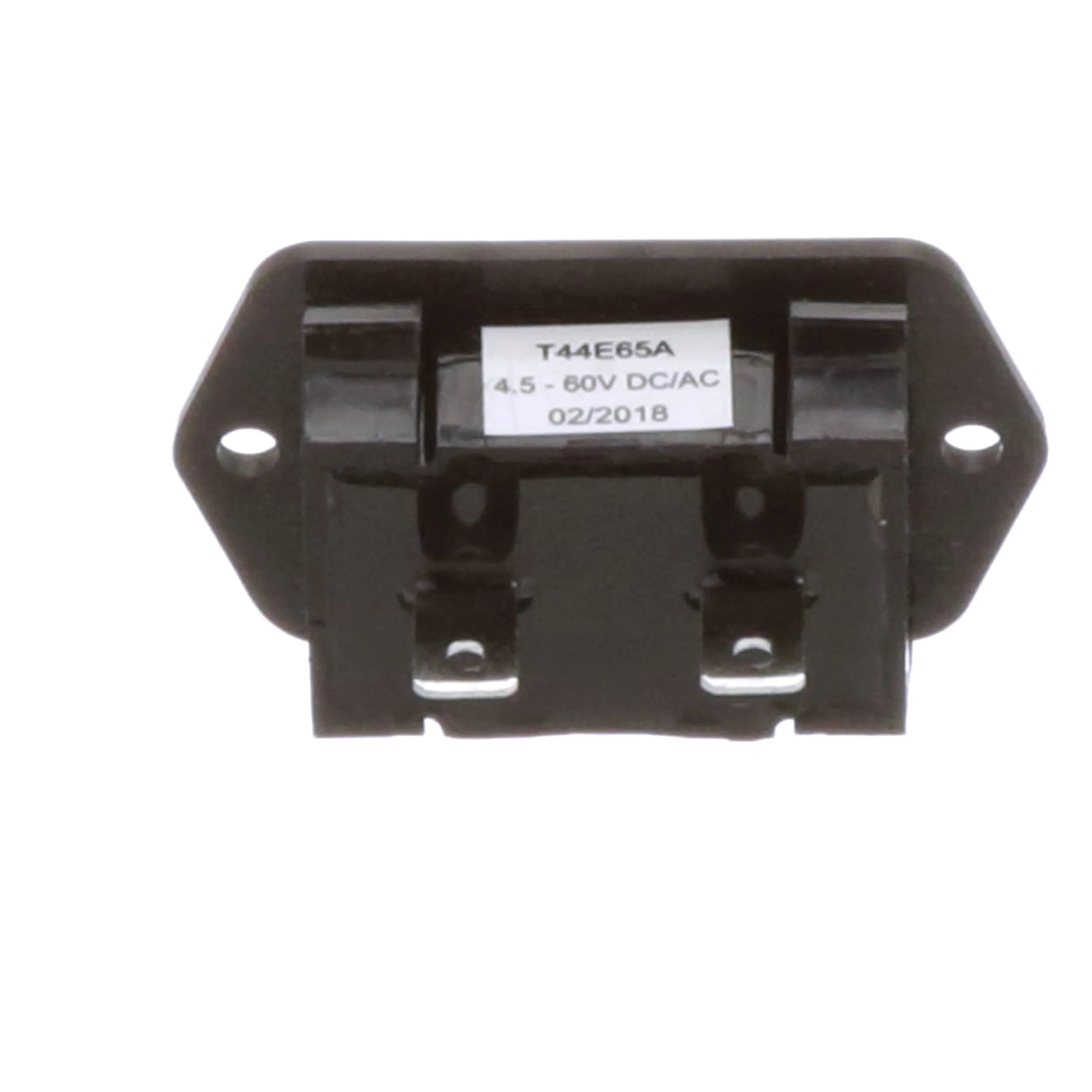

| Termination | 1/4 In. Terminals |
| Type | Electronic |
Overview

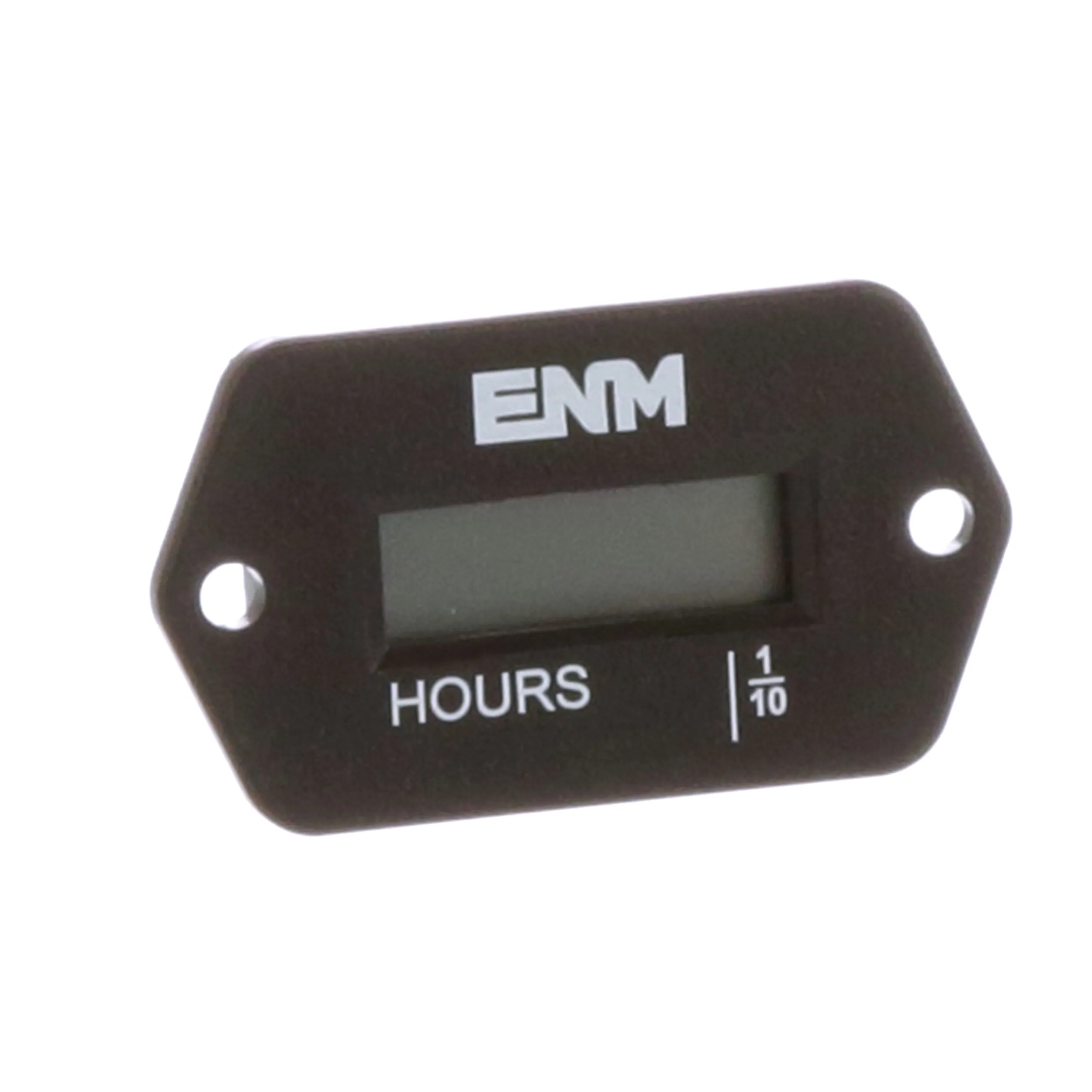

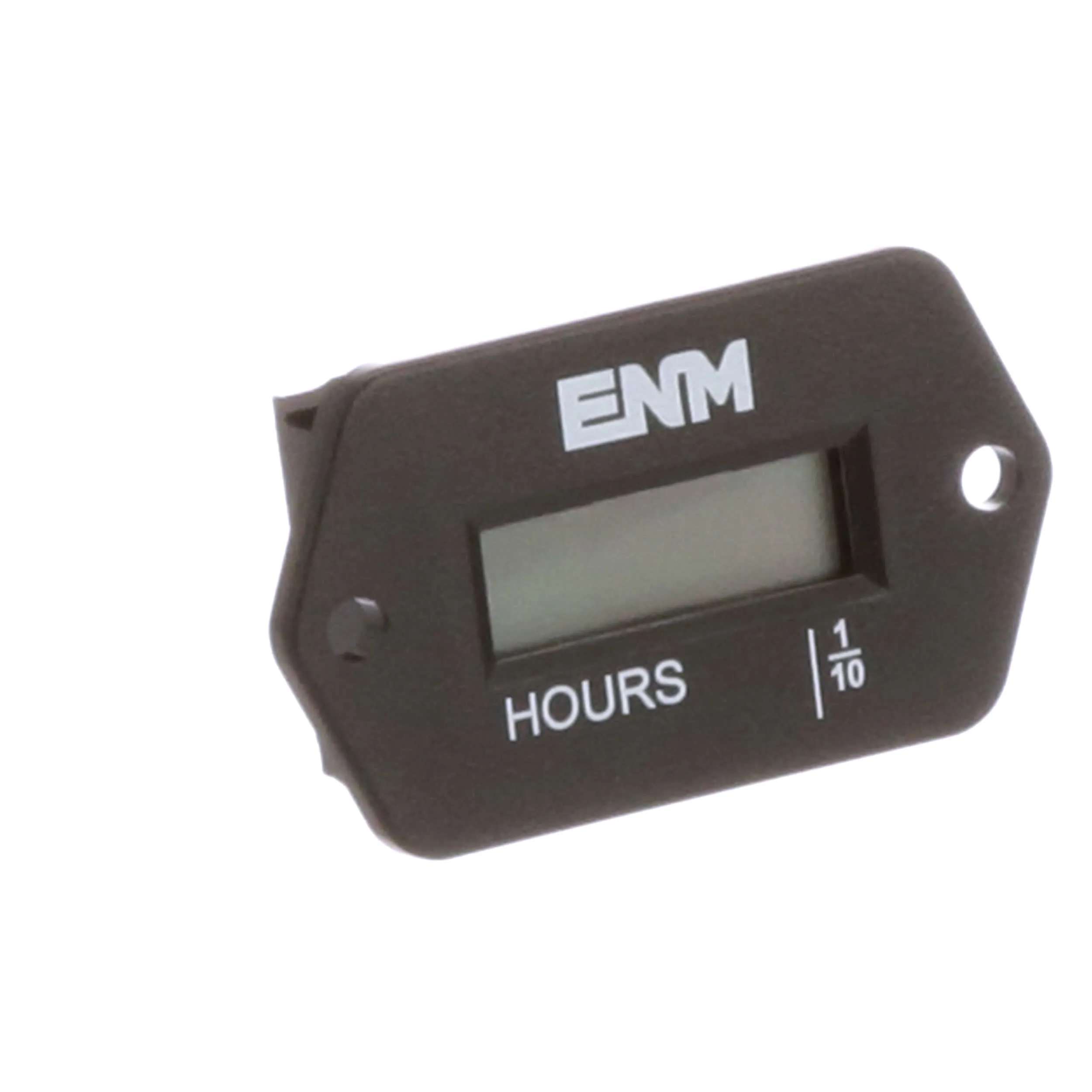

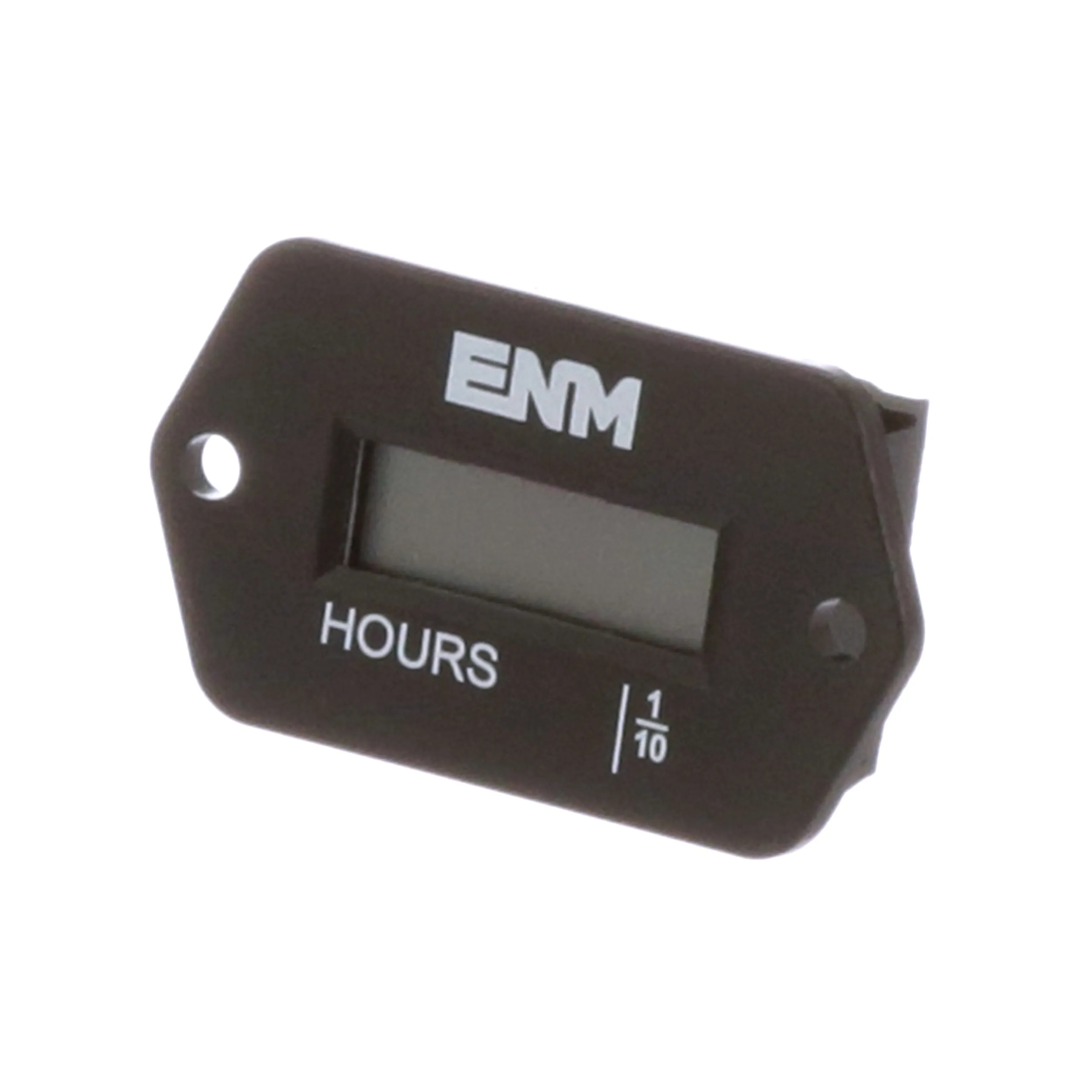

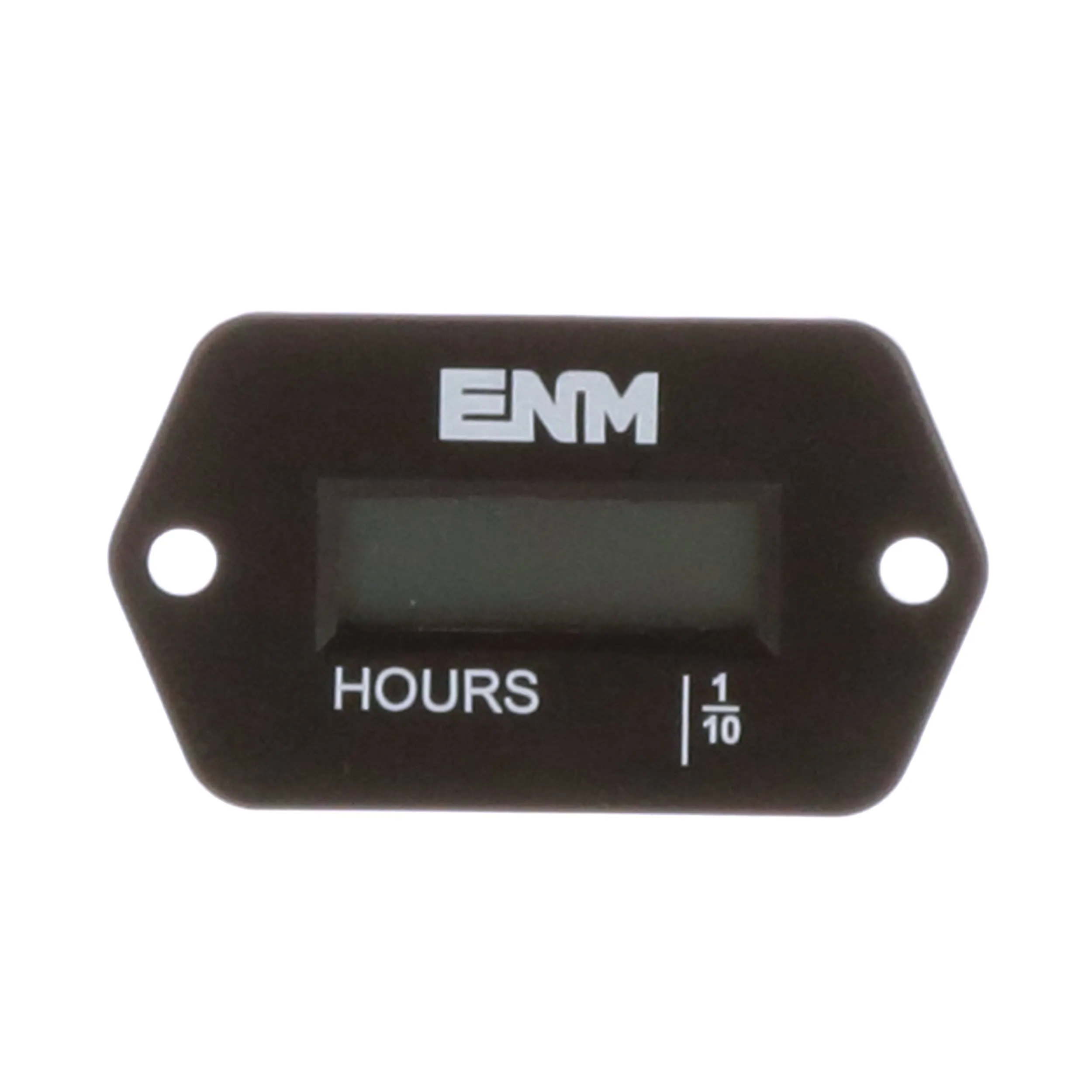

ENM's Series T44 Hour Meter features a 6-digit, 7 segment LCD display. The accumulated hours are stored on powerless, non-volatile data backup using CMOS EEPROM technology, where small space and reliable instruments are required with memory that does not rely on a battery. The unit is ideal for maintenance applications. Hour meters display hour glass and decimal point.
Features:
